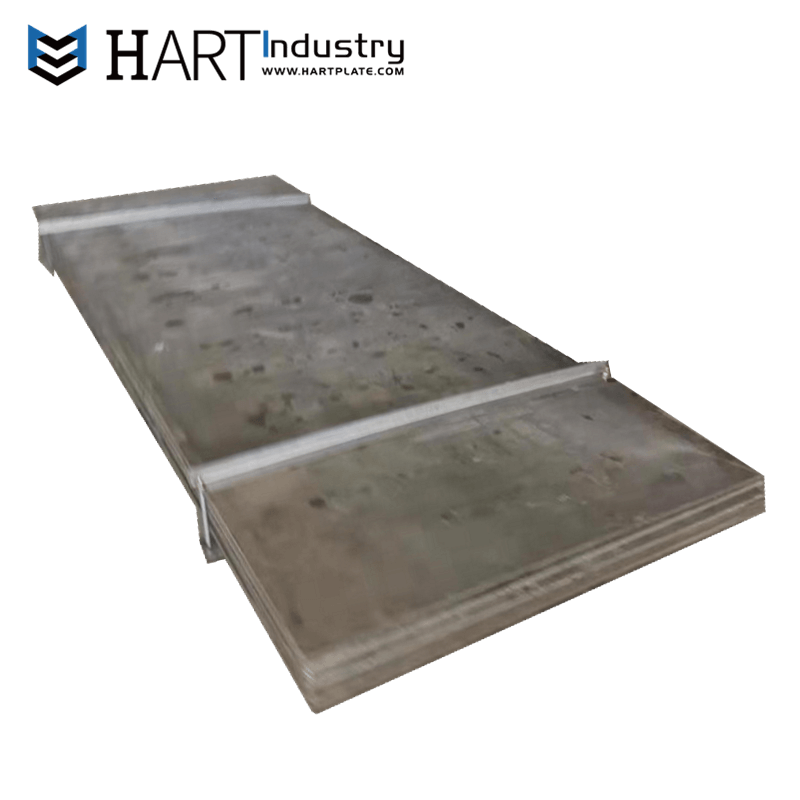

Smooth Surface Chromium Carbide Overlay Plate

Smooth CCO Plate/Smooth Surface Chromium Carbide Overlay /Smooth Overlay Plate/Smooth Hard-facing Plate

The smooth overlay plate was manufactured using advanced fusion bond submerged arc welding technology to apply a highly abrasive resistant chromium carbide on to a steel substrate producing consistent chemistry and micro structure (austenitic) with smooth overlay deposit.

This product is usually referred to as chromium carbide overlay (CCO) plate on the market. The hardfacing overlay is suitable for severe abrasive wear and impact applications. Qingdao HART Industrial Technology Co., Ltd was established in 2003, it had a long history of providing innovative wear solution and world class wear products.
The ultimate hardfaced product for your application depends on the material--whether rock, sand, gravel or other substance--striking or sliding along the surface of your wear part. It also depends on the angle and speed of impact as well as the operating temperature.

HART-SP-100:

1. Base Materials

➢ ASTM A36（Q235B), ASTM A529A （Q345B）

2. Overlay Alloy Components

➢ High Carbon, Chromium-rich

➢ Cr-C-Mn-Si-B-Fe

3. Hardness

➢ 58-62 HRC

4. Chemistry Alloy

➢ Cr: 20-29%

➢ C: 3-5%

5. Microstructure

➢ Primary M7C3 chromium-rich carbides with austenitic and

martensitic matrix.

➢ Volume fraction ＞35%.

6, ASTM G65-Procure A(weight loss)

➢ 0.26g maximum

7, Standard Dimensions

➢ Thickness: 6+4 to 12+25 mm;

➢ Standard plate size: 1000*3000, 600*3000 mm.

➢ Max plate size: 1500*3000 mm.

8, Tolerance

➢ Thickness tolerance: ±0.5 mm;

➢ Plate flatness: Within ±1.5 mm over 1.5 m plate length.

9, Applications

➢ Loading Equipments（Bucket Liners、Grab’s edge plates、Dump truck bed etc.）

➢ Mining Equipments（Fan Blades、Conveyor’s Liners etc.）

➢ Construction Equipments（Liners for loader、bulldozer、excavator and drill pipes etc.）

➢ Coal Mining Equipments（Liners for feeding chutes and hoppers, fan blade、pusher’s base plates、bucket’s linersetc.）

➢ Cement Equipments（Liners for chutes、guide vanes for classifier、end cover、fan blade、cooling disc、conveyor trough etc.）

➢ Metallurgical Equipments（Liners for Conveyors、sinters、apron feeders）

➢ Power Generation（Liners for ash & slag pipes、coal mill housing plates、impeller casing、inlet of dust collectors、bucket wheel stacker and reclaimer hammer mills、hoppers、separators）

10, Fabrication

➢ Welding, Cutting, Forming & Machining;

➢ For the details, please find the service brochure.

*Various alloys and dimensions could be supplied depend on your different operating conditions and applications

request.
