Chromium Carbide Plate/Chrome Carbide Plate/Chromium Carbide Wear Plate

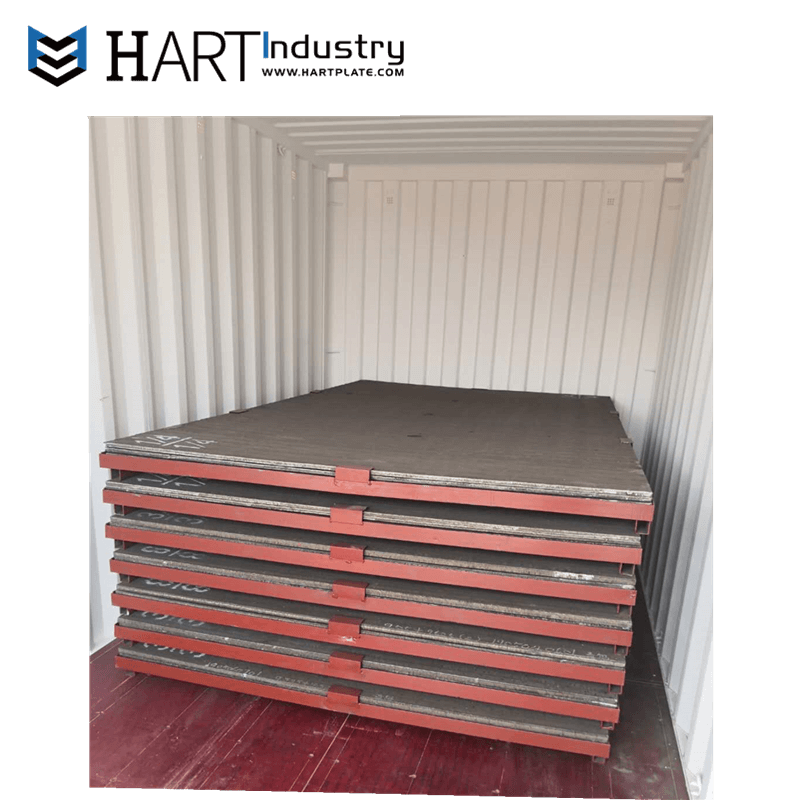

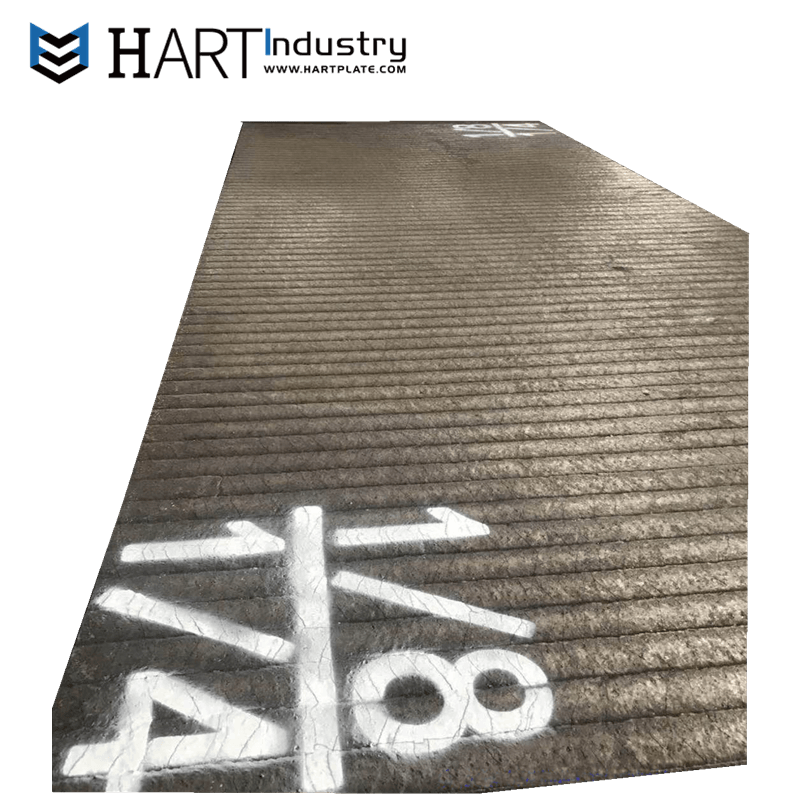

HART Chromium Carbide Plate is manufactured by depositing chromium-rich, abrasion-resistant materials on mild steel base plate using a traditional arc welding process. This product is usually referred to as chromium carbide overlay (CCO) plate on the market. The hardfacing overlay is suitable for severe abrasive wear and impact applications. Qingdao HART Industrial Technology Co., Ltd was established in 2003, it had a long history of providing innovative wear solution and world class wear products.
The ultimate hardfaced product for your application depends on the material--whether rock, sand, gravel or other substance--striking or sliding along the surface of your wear part. It also depends on the angle and speed of impact as well as the operating temperature.
[Specification]
Base Material：ASTM A36(Q235B)
ASTM A529A(Q345B) , all weldable steel base plate is optional
Hardfacing Layer： Chromium carbon alloy on Fe basis(austenite)
Bulk hardness : >630HV
Mean hardness : >55HRC
Layer thickness: 3 to 30 mm
Type of Products：Flux cored arc welding
Alloy Description: Austenitic chrome carbide iron(Chromium white iron)
Carbide Hardness: >1500HV
Volume Fraction of Carbide: >30%
Elemention Composition: Carbon:3-7.5%
Chromium:18-35%
Microstructure: Chromium rich primary carbides in a carbide-austennite entectic matrix
Recommended Applications: In cases of combined high abrasion and medium wear applications.
Typical Applications： Wear liner, Chute liner, Feed chute, tractor shovel front edges, excavator bucket liner, heavy truck liner, ball mill liner, etc.
*Various alloys to be used depend on different operating condition and applications. Thick | C% | Cr% | Mn% | Si% | HRC | 备注 |
3 on 3 | 3~4 | 18~20 | 0.5~1 | 0.5~1 | 56~58 |
|
3 on 4 | 3~4 | 18~20 | 0.5~1 | 0.5~1 | 56~58 |
|
3 on 5 | 3~4 | 18~22 | 0.5~1 | 0.5~1 | 58~60 |
|
3 on N | 3.5~4.5 | 20~25 | 0.5~1 | 0.5~1 | 58~62 | N＞5 |
4 on N | 3.5~4.5 | 20~25 | 0.5~1 | 0.5~1 | 58~62 |
5 on N | 4~6 | 23~25 | 0.5~1 | 0.5~1 | 58~62 |
6 on N | 4~6 | 24~28 | 0.5~1 | 0.5~1 | 58~62 |
7 on N | 4.5~6 | 24~28 | 0.5~1 | 0.5~1 | 58~62 |
8 on N | 4.5~6 | 24~28 | 0.5~1.5 | 0.5~1 | 58~62 |
9 on N | 5~6 | 26~30 | 0.5~1.5 | 0.5~1 | 60~64 |
10 on N | 5~6 | 26~30 | 0.5~1.5 | 0.5~1 | 60~64 |
11 on N | 5~6 | 26~30 | 0.5~1.5 | 0.5~1 | 60~64 |
12 on N | 5~6 | 26~34 | 0.5~1.5 | 0.5~1 | 60~64 |
N on N | 5~6 | 26~34 | 0.5~2 | 0.5~1 | 60~64 | N＞12 |
