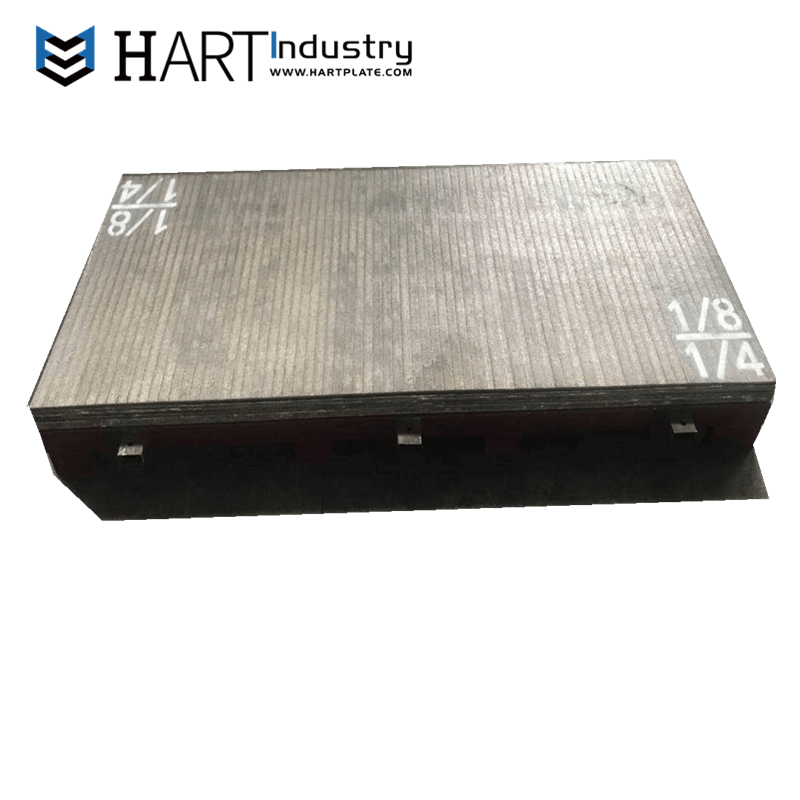

Chromium Carbide/Cladded Wear Steel Plate/ Impact Resistance Plate/Wear and Impact Resistance
Chromium carbide cladded wear steel plate is manufactured by mild steel based, epositing chromium-rich, abrasion-resistant materials more than 20% chrome carbide . This product is usually referred to as chromium carbide overlay (CCO) plate on the market. The hardfacing overlay is suitable for severe abrasive wear and impact applications.
The ultimate hardfaced product for your application depends on the material--whether rock, sand, gravel or other substance--striking or sliding along the surface of your wear part. It also depends on the angle and speed of impact as well as the operating temperature.
[Specification]
Base Material：ASTM A36(Q235B)
ASTM A529A(Q345B) , all weldable steel base plate is optional
Hardfacing Layer： Chromium carbon alloy on Fe basis(austenite)
Bulk hardness : >630HV
Mean hardness : >55HRC
Layer thickness: 3 to 30 mm
Type of Products：Flux cored arc welding
Alloy Description: Austenitic chrome carbide iron(Chromium white iron)
Carbide Hardness: >1500HV
Volume Fraction of Carbide: >30%
Elemention Composition: Carbon:3-7.5%
Chromium:18-35%
Microstructure: Chromium rich primary carbides in a carbide-austennite entectic matrix
Recommended Applications: In cases of combined high abrasion and medium wear applications.
Typical Applications： Wear liner, Chute liner, Feed chute, tractor shovel front edges, excavator bucket liner, heavy truck liner, ball mill liner, etc.
*Various alloys to be used depend on different operating condition and applications. Thick | C% | Cr% | Mn% | Si% | HRC | 备注 |
3 on 3 | 3~4 | 18~20 | 0.5~1 | 0.5~1 | 56~58 |
|
3 on 4 | 3~4 | 18~20 | 0.5~1 | 0.5~1 | 56~58 |
|
3 on 5 | 3~4 | 18~22 | 0.5~1 | 0.5~1 | 58~60 |
|
3 on N | 3.5~4.5 | 20~25 | 0.5~1 | 0.5~1 | 58~62 | N＞5 |
4 on N | 3.5~4.5 | 20~25 | 0.5~1 | 0.5~1 | 58~62 |
5 on N | 4~6 | 23~25 | 0.5~1 | 0.5~1 | 58~62 |
6 on N | 4~6 | 24~28 | 0.5~1 | 0.5~1 | 58~62 |
7 on N | 4.5~6 | 24~28 | 0.5~1 | 0.5~1 | 58~62 |
8 on N | 4.5~6 | 24~28 | 0.5~1.5 | 0.5~1 | 58~62 |
9 on N | 5~6 | 26~30 | 0.5~1.5 | 0.5~1 | 60~64 |
10 on N | 5~6 | 26~30 | 0.5~1.5 | 0.5~1 | 60~64 |
11 on N | 5~6 | 26~30 | 0.5~1.5 | 0.5~1 | 60~64 |
12 on N | 5~6 | 26~34 | 0.5~1.5 | 0.5~1 | 60~64 |
N on N | 5~6 | 26~34 | 0.5~2 | 0.5~1 | 60~64 | N＞12 |
